The high-fidelity design features 24-bit/96 kHz A/D and D/A signal converters along with a 32-bit DSP, allowing the addition of effects without lowering the original sound quality. A signal bypass function has also been incorporated.
3 Band Beat Effector
1 Beat effects [BPM mode]
2 The EFX-1000 is equipped with the same automatic BPM counter/beat effector made popular by the EFX-500, which allows effect processing on single selected bands in sync with the track tempo (BPM), for greater expressive possibilities than with conventional all-band effectors.
3 Beat effects [RHYTHM mode]
4 This industry-first rhythm effector lets you apply effects in sync with a rhythm you input yourself. With the capability of a far wider range of unique effects compared to previous beat effectors, you have the potential for a new level of DJ performance.
Digital Jog Break Function
The jog dial allows real-time control of effect sounds. Up to eight seconds of jog function can be stored in memory for automated replay. In addition to single memory plaback there is a loop mode for stored jog motion playback. When used in combination with the beat effector, up to 49 effects can be created.

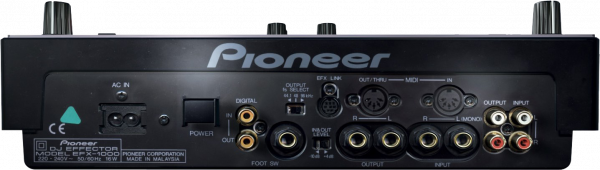

MIDI IN/OUT Function
External MIDI signals (control signals and timing clock signals) can be used to control the effector and as a medium for using the effector to control a sequencer or other MIDI component.
Digital Link Function
A variety of functions can be performed by using the dedicated digital link cable to connect this unit to a Pioneer DJ mixer (DJM-1000) with digital link support.
Equipped with digital IN/OUT connectors at 24-bit/96 kHz sampling, the EFX-1000 allows for use in-studio track creation and other applications where high sound quality is demanded.
